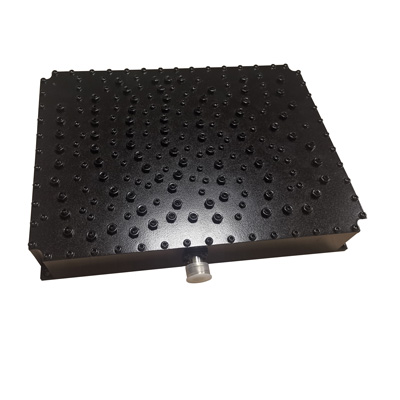

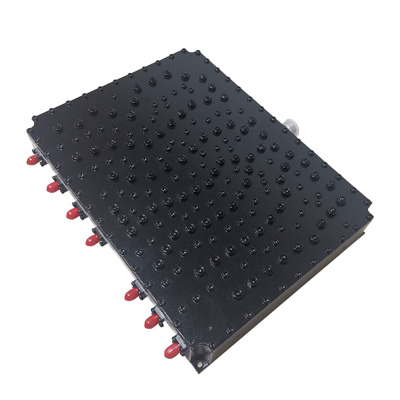

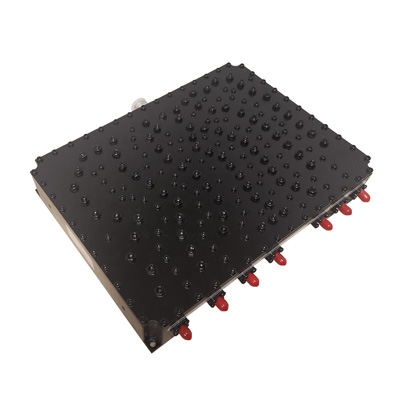

Seven Band Combiners
Model: BT-0507010727SMA-NF
Seven-band combiners have seven input ports and two output ports, which combine and separate different frequency components. The effective design of the combiners is a key issue in achieving compatibility across multiple networks.
Product Details
Technical Specifications:
Type | 7 Ports In- 1Port Out | |||
Operating Frequency (MHz) | Port 1 | Port 2 | Port 3 | Port 4 |
790-830 | 888-961 | 1560-1613 | 1800-1887 | |
Port 5 | Port 6 | Port7 | ||
2105-2178 | 2405-2490 | 2620-2690 | ||
VSWR | < 1.25 | |||
Insertion Loss | <0.5dB@(755-2175MHz) <1.0dB@(2395-2695MHz) | |||
Isolation Between Bands | ≥50 dB | |||
Inter-modulation(3rd order) | <-130dBc @2x2w | |||
Power Handling (W) | 50W | |||
Connector Type | 7pcs SMA Female and 1pc N-Female | |||
Application | Indoor（IP51） | |||
Humidity | 5% - 95% | |||
Impedance | 50 Ω | |||
Operating Temperature (°C) | -40 °C to +65 °C | |||
Wight | 4.5Kg | |||

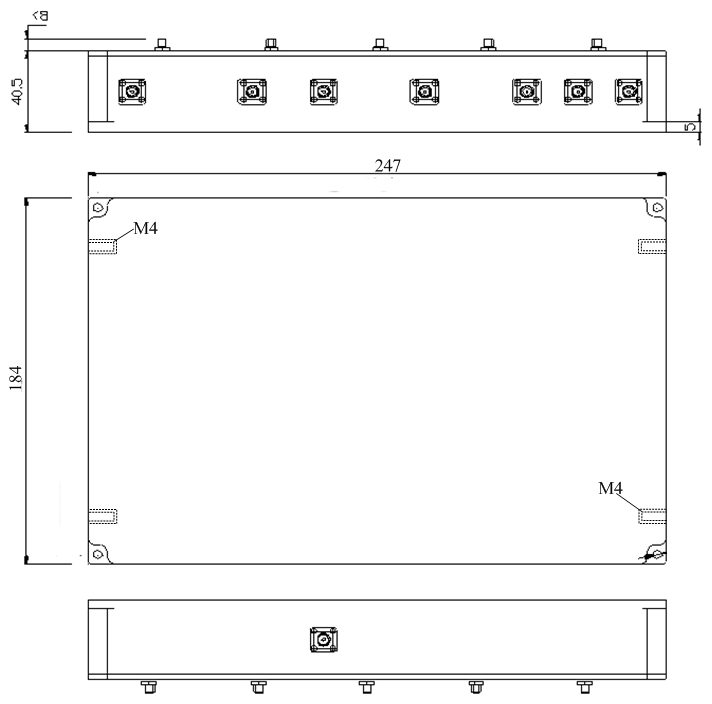

Outline Drawing:
